Aerial Bunched Cable (ABC)

Aerial Bunched Cable (ABC) Specification

No Of Core
2 Core to 5 Core

Connector Type
Compression/Insulated Piercing Connectors

Cable Length
Available as per requirement Meter (m)

Temperature
-40 C to +90 C Reaumur (oRe)

Conductor Type
Stranded

Product Type
Aerial Bunched Cable (ABC)

Material
Aluminium + XLPE

Function
Electricity Distribution

Usage
Overhead Power Transmission

Voltage Surge
Up to 12 kV

Frequency (MHz)
50 Hz Hertz (HZ)

Rated Voltage
1100 V Volt (V)

Rated Current
As per cable size, typically 45A to 262A Biot ( Bi)

Cable Capacity
Varies as per specification and core size Biot ( Bi)

Insulation Material
XLPE (Cross Linked Polyethylene)

Conductor Material
Aluminium

Length
Standard coil length 500 m or as required Meter (m)

Size
16/25/35/50/70/95/120/185 sq. mm

Color
Black

Diameter
As per cable size (typically 8-40 mm) Meter (m)

Application
Urban & rural electrification, power distribution

Messenger Wire Material
Aluminium Alloy

Dielectric Strength
21 kV/mm

Fire Retardant
Yes

Standard
IS 7098 / IS 14255 / IEC 60502-1

Packaging Type
Coil/Drum packaging

UV Resistance
Yes

Moisture Resistance
Excellent

Minimum Bending Radius
12 x Cable Diameter

Earth/Ground Wire
Optional Messenger/Neutral Wire

Weatherproof
Yes

Maximum Operating Temperature
90C (continuous), 250C (short-circuit)

Tensile Strength
High tensile strength

Aerial Bunched Cable (ABC) Trade Information

Minimum Order Quantity
50 Number

Delivery Time
1 Days

Main Domestic Market
Madhya Pradesh, Maharashtra, Gujarat

About Aerial Bunched Cable (ABC)

We offer a reliable and energy-efficient range of Aerial Bunched Cables (ABC), designed for overhead power distribution in urban, rural, and hilly terrains. These cables are ideal for installations where ground-level cable laying is impractical or costly.

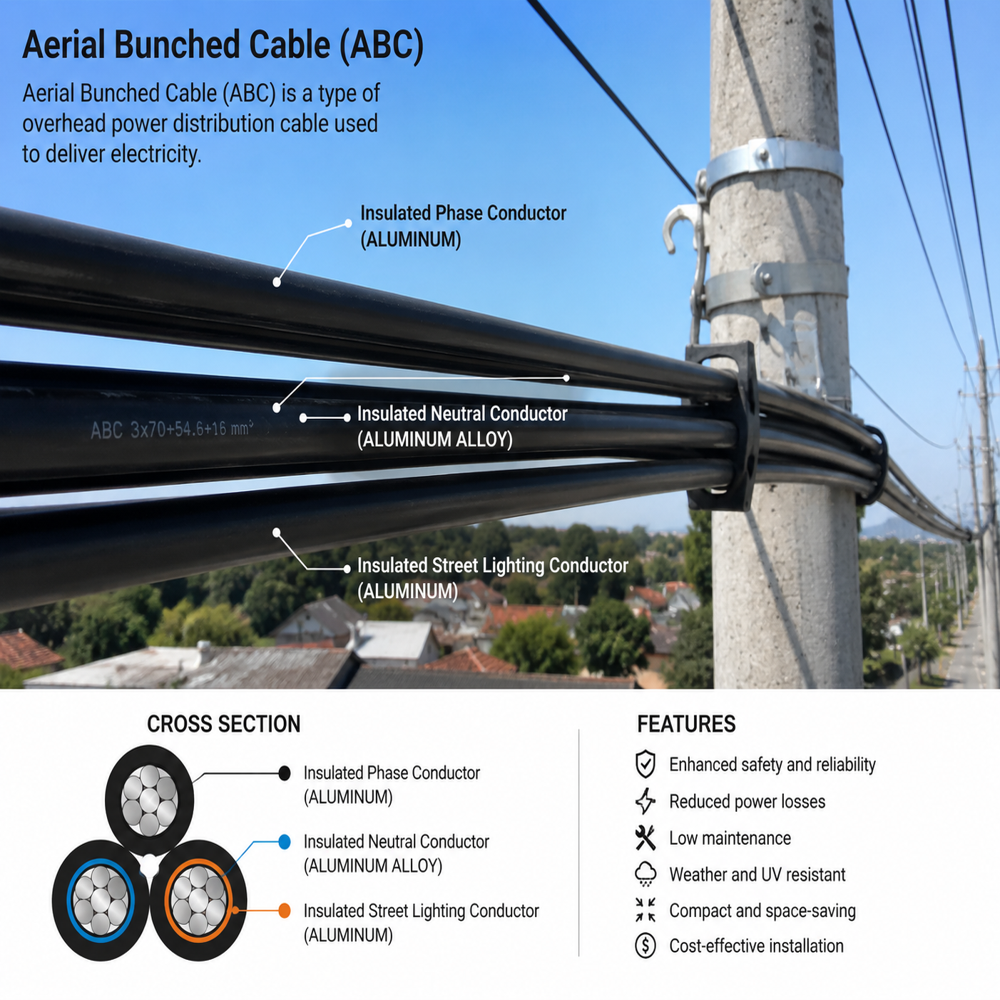

Our ABC cables are manufactured using aluminium conductors with XLPE insulation, twisted around a bare or insulated messenger wire (typically aluminium alloy or steel-reinforced), ensuring mechanical support and electrical safety.

Core Variants Offered:

1+1, 1+2, 3+1, 3+1+1 core constructions
Sizes from 16 sq.mm to 120 sq.mm
XLPE Insulation
Bare or Insulated Messenger Wire (AAC/AAAC/ACSR)
Copper/Aluminium Neutral/Street Light Cores

Suitable for LT distribution (1.1kV). Custom configurations available on request.

Advanced Design for Reliable Power Distribution

Aerial Bunched Cable is engineered for overhead power transmission, offering robust performance in challenging environments. The UV-stabilized XLPE insulation and weatherproof construction make it ideal for installations exposed to sunlight, rain, or fluctuating temperatures. With high dielectric and tensile strength, ABC minimizes power losses while ensuring long service life, making it a preferred choice for urban and rural electrification across India.

Flexible Installation and Superior Safety

Available in multiple sizes and core options, ABC supports diverse electrical demands with superior safety features such as fire retardancy and high voltage surge resistance (up to 12 kV). Its installation process is simplified by its flexibility, lightweight design, and the use of insulated or compression connectors. The cables high-quality materials and robust messenger wire also reduce maintenance and minimize risks associated with traditional bare conductors.

FAQs of Aerial Bunched Cable (ABC):

Q: What makes Aerial Bunched Cable suitable for overhead power distribution in India?

A: Aerial Bunched Cable is built to withstand extreme weather conditions common in India, thanks to its UV-resistant, weatherproof, and fire-retardant XLPE insulation. The cable also has high tensile strength and optional aluminium alloy messenger wire, making it durable and secure for both urban and rural overhead transmission.

Q: How should Aerial Bunched Cable be installed for maximum efficiency and safety?

A: For optimal performance, the cable should be installed with a minimum bending radius of 12 times the cable diameter. Use the optional messenger/neutral wire for mechanical support, and connect using compression or insulated piercing connectors. Ensure adherence to local electrical regulations and recommended best practices for overhead transmission lines.

Q: What voltage and current levels can ABC safely handle?

A: Aerial Bunched Cable is rated up to 1100 V for voltage, with surge protection up to 12 kV. The current rating usually ranges from 45A to 262A, depending on the cable size and the number of cores, ensuring safe transmission for a wide range of distribution systems.

Q: When should you choose an ABC cable with an optional aluminium messenger or neutral wire?

A: An ABC with a messenger or neutral wire is recommended when additional mechanical support or a dedicated earth/ground path is needed. Its especially beneficial for longer spans, challenging terrains, or installations where system stability and grounding are critical.

Q: Where are Aerial Bunched Cables most commonly used?

A: ABC is widely utilized for urban and rural electrification, power distribution in residential and commercial zones, and areas with challenging environments where reliability and safety are priorities. Its robust construction allows for secure, efficient overhead power distribution in various regions across India.

Q: What are the benefits of using UV-resistant, fire-retardant XLPE insulation in ABC?

A: The use of XLPE insulation provides superior thermal and moisture resistance, ensuring safe operation from -40C to +90C. UV resistance protects the cable from sunlight degradation, while fire retardant properties enhance safety during fault conditions, collectively extending cable service life.

Q: How does ABC packaging and length flexibility support diverse installation needs?

A: Aerial Bunched Cable is available in standard 500m coils or customized drum packaging, as per project requirements. This flexibility simplifies transportation, storage, and installation, reducing time and labor costs while allowing easy adaptation to varied site conditions.
