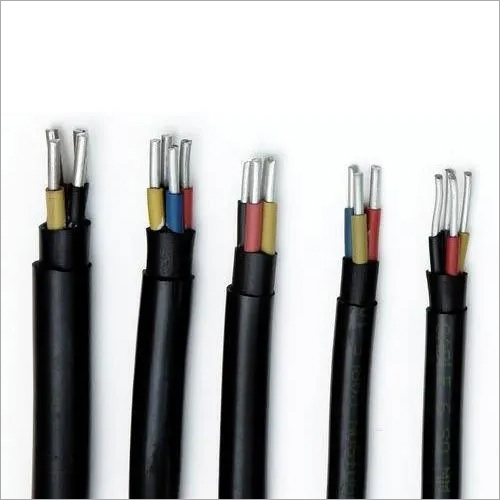

Aluminium Conductor Submersible Pump Cables

Aluminium Conductor Submersible Pump Cables Specification

Temperature
-10C to +70C

No Of Core
2/3/4 core options available

Conductor Type
Stranded Aluminium

Cable Length
Rolls of 100 m or customizable

Connector Type
Bare ends or with terminal connectors (on request)

Product Type
Submersible Pump Cable

Material
Aluminium

Function
Power Transmission to Submersible Pump

Usage
Underwater/Submersible Applications

Voltage Surge
Up to 1.1 kV

Frequency (MHz)
50 Hz

Rated Voltage
1100 V

Rated Current
As per cable size and specification

Cable Capacity
As per standard rating

Insulation Material
PVC (Polyvinyl Chloride)

Conductor Material
Aluminium

Length
Available in various lengths (customizable)

Size
Varies (e.g., 1.5 sqmm, 2.5 sqmm, 4 sqmm, etc.)

Color
As per standard (black/red/yellow/blue)

Diameter
Based on core and sizing specifications

Application
Submersible pumps, irrigation, agriculture, industrial, domestic water supply

Resistance
Excellent chemical and oil resistance

Sheath Type
PVC Outer Sheath

Fire Retardant
PVC Insulation is Fire Retardant

Packaging Type
Coils and Wooden Drums

Weight
Depends on size and length

Flexibility
Good flexibility for easy installation

Insulation Thickness
Nominal as per IS:694

Armouring
Unarmoured (for most domestic use)

Moisture Resistance
High moisture and abrasion resistance

Aluminium Conductor Submersible Pump Cables Trade Information

Minimum Order Quantity
50 Meter

Main Domestic Market
Gujarat, Madhya Pradesh, Maharashtra

About Aluminium Conductor Submersible Pump Cables

We offer a cost-effective and durable range of Aluminium Conductor Submersible Pump Cables, designed to deliver reliable performance in submerged and wet environments. These cables are primarily used in deep well pump connections, agricultural borewell systems, and irrigation motors where affordability and corrosion resistance are key.

Manufactured using high-purity aluminium conductors with PVC or XLPE insulation, these cables are engineered for long-term submersion, offering both mechanical strength and moisture resistance. Their flat construction ensures easy installation and minimizes space consumption in conduit systems or direct burial.

Core Variants Offered:

2 Core and 3 Core Flat Cables
Sizes from 1.5 sq mm to 16 sq mm
Aluminium Conductors (solid or stranded)
PVC or XLPE Insulation
Flat Geometry for Submersible Pump Applications

Robust PVC Outer Sheath Construction

The outer PVC sheath of these cables provides exceptional protection against moisture, abrasion, chemicals, and oils. Its fire-retardant property further enhances operational safety, making these cables suitable for both indoor and outdoor submersible pump installations.

Flexible and Customizable Design

Aluminium conductor submersible pump cables offer excellent flexibility, allowing for easy routing and installation in constrained spaces. Available in multiple lengths, cross-sectional sizes, and colours, these cables can be tailored to meet diverse requirements, ensuring optimal compatibility with various pump systems.

FAQ's of Aluminium Conductor Submersible Pump Cables:

Q: How are aluminium conductor submersible pump cables installed for domestic and agricultural pump applications?

A: For most domestic or agricultural pump setups, these unarmoured cables are installed by connecting the bare or terminal ends to the pump and supply source, then routing and securing the cable safely underwater or underground as required. Due to their flexibility and moisture resistance, installation is straightforward.

Q: What benefits does the PVC insulation and sheath bring to these pump cables?

A: The PVC insulation and outer sheath provide outstanding protection against moisture, abrasion, chemicals, and oils. Additionally, their fire-retardant property enhances safety, making the cables highly reliable for use in submerged and harsh environments.

Q: When should I choose an unarmoured submersible pump cable over an armoured type?

A: Unarmoured submersible cables are suitable for most domestic and light industrial applications where there is minimal risk of mechanical damage. If used in environments where cables may encounter physical impact, an armoured variant may be better suited.

Q: Where can these cables be used and what types of pumps are compatible?

A: These cables are ideal for use in submersible pumps involved in irrigation, agriculture, industrial processes, and domestic water supply setups. They are compatible with 2, 3, or 4-core pump connections, available in standard and customized lengths.

Q: What is the rated voltage and current capacity of aluminium submersible pump cables?

A: These cables are rated for a voltage of up to 1100 V and are suitable for voltage surges up to 1.1 kV. The rated current depends on the cable's cross-sectional area and adheres to standard ratings as specified by IS:694.

Q: How does the flexibility of these cables improve the installation process?

A: Their good flexibility enables easy handling, bending, and routing during installation, especially in confined or submerged locations, reducing installation time and effort while ensuring a secure connection.

Q: What packaging options are available for these submersible pump cables?

A: Cables are available in rolls of 100 meters or can be customized to specific lengths. Packaging options include coils and wooden drums to facilitate safe transportation and storage.
