LT Power And Control Cable

LT Power And Control Cable Specification

Cable Length
Customizable

Conductor Type
Solid / Stranded

Temperature
Up to 90C (XLPE), 70C (PVC)

Connector Type
Open End / Lugs on Request

No Of Core
Single core to Multi-core

Product Type
LT Power And Control Cable

Material
Copper / Aluminium

Function
Power Transmission and Control

Usage
Industrial, Commercial, Domestic Applications

Voltage Surge
Up to 1.1 kV

Frequency (MHz)
50 Hz

Rated Voltage
1100 V

Rated Current
As per specification / standard

Cable Capacity
Depends on cross-sectional area and application

Insulation Material
PVC / XLPE

Conductor Material
Copper / Aluminium

Length
Available in standard and custom lengths

Size
Varies as per requirement

Color
Black, Multicolor cores

Diameter
As per cable size

Application
Power Distribution and Control Circuits

Flame Retardant
Available as per request

Sheath Material
PVC / FRLS / HR PVC

Moisture Resistance
Yes

UV Resistant
Yes (for outdoor application)

Armour Type
Armoured / Unarmoured

Resistance to Chemicals
Yes

Minimum Bending Radius
As per IS/IEC standards

Packing Type
Rolls, Drums or as specified

Test Voltage
3.5 kV AC

Installation Type
Underground, Open Tray, Ducts, Conduits

LT Power And Control Cable Trade Information

Minimum Order Quantity
50 Meter

Delivery Time
5-7 Days

Main Domestic Market
Gujarat, Madhya Pradesh, Maharashtra

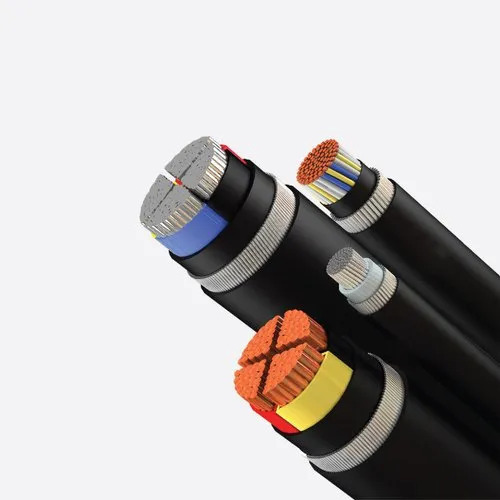

About LT Power And Control Cable

We offer a wide range of 1.1 kV LT Power and Control Cables designed for reliable performance in industrial, commercial, and utility environments. Available in PVC or XLPE insulation, our cables come in both armoured and unarmoured variants, with options ranging from single core to four core, including three & half core constructions.

Conductor options include aluminium or copper, with standard sizes such as 1.5 sq.mm and 2.5 sq.mm also available.

These cables conform to IS 1554 and IS 7098 standards and are ideal for power distribution panels, duct laying, and underground installations.

Core Variants Offered:

Single Core to Four Core
PVC or XLPE Insulation
Armoured & Unarmoured
Copper or Aluminium Conductor (up to 2.5 sq.mm)

Custom lengths and specifications available on request.

Versatile and Robust Construction

LT Power and Control Cables come in both armoured and unarmoured options, featuring solid or stranded copper or aluminium conductors. With insulation and sheath materials like PVC and XLPE, they are suitable for harsh industrial conditions and demanding environments. Multiple flame retardant and chemical resistance options boost their reliability for a variety of applications.

Flexible Installation and Customization

Designed for maximum flexibility, these cables can be installed underground, on open trays, in ducts, or conduits. Available in single core to multicore configurations and a range of standard or tailored lengths, LT cables accommodate diverse requirements. Packing options include rolls or drums, and connector types can be supplied as open end or with lugs as specified.

FAQ's of LT Power And Control Cable:

Q: How do LT Power and Control Cables ensure safety and durability in harsh environments?

A: These cables are built with features like flame retardant sheaths, moisture, chemical, and UV resistance, making them highly reliable for underground, outdoor, and industrial applications. Armoured versions provide additional mechanical protection, ensuring long service life even under severe conditions.

Q: What is the standard process for selecting the correct LT cable for my application?

A: Begin by determining your application's voltage, current, and installation environment. Based on these factors, select the conductor material (copper or aluminium), insulation and sheath type (PVC, FRLS, XLPE, etc.), and cable size. Manufacturers usually help match specifications to IS/IEC standards for optimum safety and efficiency.

Q: Where can these LT cables be installed?

A: LT Power and Control Cables are adaptable for installation underground, in open cable trays, ducts, or conduits. Their chemical and moisture resistance also makes them apt for outdoor and industrial spaces where protection against the elements is crucial.

Q: When should I choose armoured over unarmoured cables?

A: Choose armoured cables when extra mechanical protection is needed, such as in underground installations or areas at risk of physical damage. Unarmoured cables are more suited for controlled environments or internal wiring where mechanical hazards are minimal.

Q: What are the benefits of FRLS and HR PVC sheath materials?

A: FRLS (Flame Retardant Low Smoke) and HR PVC (Heat Resistant PVC) sheaths enhance safety by minimizing toxic smoke and providing higher temperature tolerance, making them ideal for applications where fire safety or higher operating temperatures are a concern.

Q: How can the cable length and configuration be customized to project requirements?

A: Cable lengths can be supplied as per your requirements, in standard rolls, drums, or customized lengths. The cables are available in single-core and multi-core options, with color-coded cores for easy identification and custom connector types upon request.
