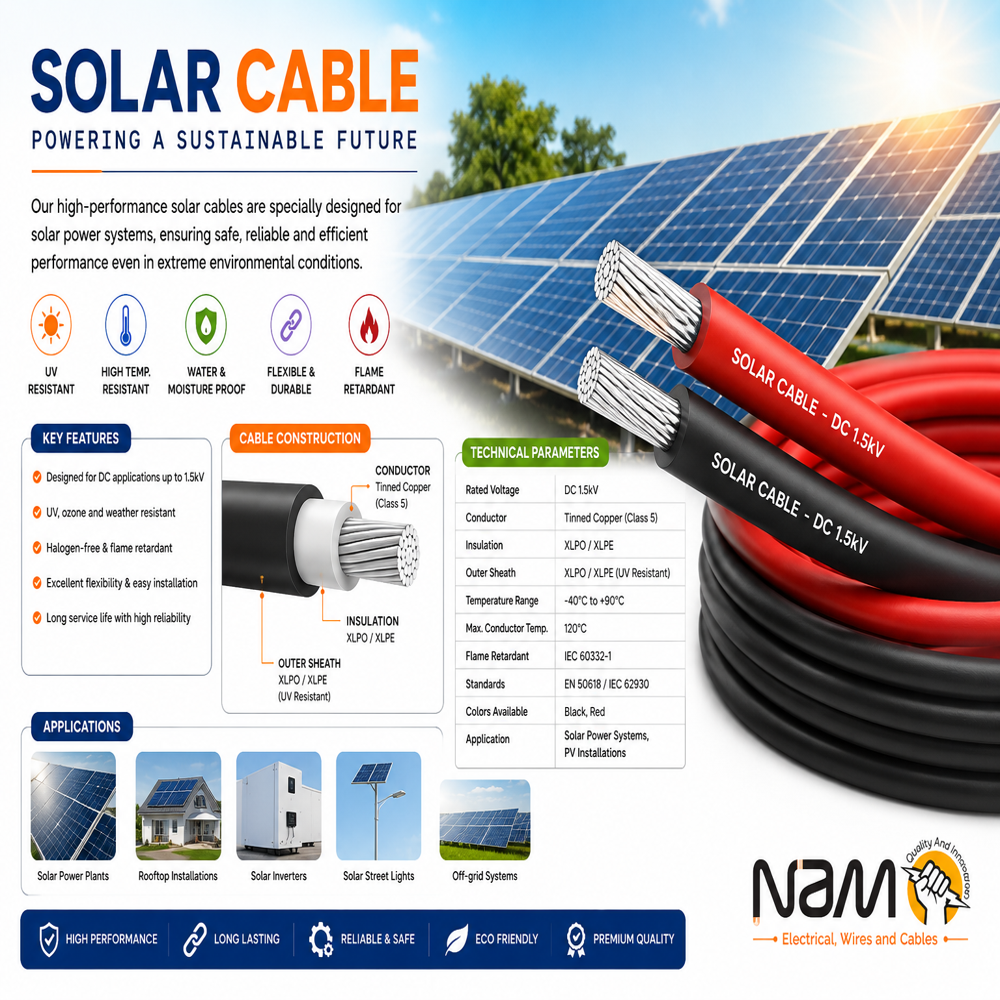

Solar Cable

Solar Cable Specification

Cable Length
Rolls of 100m or as per requirement

Temperature
-40C to +90C (operating), up to 120C (short circuit)

No Of Core
Single core

Conductor Type
Stranded

Connector Type
MC4 compatible or bare ends

Product Type
Solar Cable

Material
Copper with XLPE/PVC insulation

Function
Power transmission for photovoltaic systems

Usage
Solar panel electrical connections

Voltage Surge
Up to 1000V DC

Frequency (MHz)
DC application (0 Hz)

Rated Voltage
600/1000V

Rated Current
20A to 50A (depending on cable size)

Cable Capacity
Depends on conductor cross-section (2.5mm2, 4mm2, 6mm2)

Insulation Material
XLPE (Cross-Linked Polyethylene) or PVC

Conductor Material
Tinned Copper

Length
Available in custom and standard lengths (up to 100 meters reel)

Size
2.5mm2, 4.0mm2, 6.0mm2, other sizes on request

Color
Black, Red

Diameter
Approx. 6 mm (for 4 mm2 cable)

Application
Solar power plants, rooftop PV systems, off-grid and on-grid installations

Sheath Material
UV stabilized halogen-free cross-linked polymer

Standards
TUV EN 50618, IEC 62930, RoHS compliant

Tensile Strength
High, suitable for harsh environmental conditions

Insulation Thickness
0.7 mm (typical for 4 mm2)

UV Resistance
Yes, designed for outdoor installation

Flame Retardance
IEC 60332-1 compliant

Test Voltage
6.5 kV AC (5 min)

Maximum Conductor Resistance
5.09 /km (at 20C for 4mm2)

Weatherproof
Yes

Minimum Bending Radius
4x cable diameter

Solar Cable Trade Information

Minimum Order Quantity
1 Set

Delivery Time
5-7 Days

About Solar Cable

Experience the trending choice in solar connectivity with our Premier Solar Cable, meticulously engineered for peerless performance and value. Made from stellar-grade tinned copper with UV-resistant, halogen-free XLPE or PVC insulation, this cable achieves exceptional longevity, even under relentless sunlight. Fully compliant with TUV EN 50618, IEC 62930, and RoHS standards, it exhibits high tensile strength, flame retardance, and impressive weatherproofing. Ideal for both off-grid and on-grid photovoltaic systems, it delivers reliable power transmission, ensures safety, and supports voltage surges up to 1000V DC. Available in custom lengths and popular colors.

Versatile Solar Cable for Reliable Outdoor Connections

Our solar cable is specifically designed for dependable outdoor use, serving as the primary conduit for power transmission in solar power plants, rooftop PV systems, and off-grid applications. The installation process is straightforward, utilizing single-core, stranded tinned copper conductors in convenient rolls or custom lengths. With stellar UV resistance, weatherproof construction, and compatibility with MC4 connectors or bare ends, this cable ensures a secure connection and ongoing safety across even the harshest environmental conditions.

Supply Ability and Certifications for Global Markets

We maintain a robust supply ability by fulfilling bulk purchase orders and dispatching well-packaged cable reels quickly, frequently shipping to international markets. Our main export destinations include North America, Europe, Asia, and the Middle East. Every shipment is supported with premier certifications such as TUV EN 50618 and RoHS, ensuring top-tier compliance and performance. Orders are efficiently processed and shipped, guaranteeing reliability from purchase to delivery.

FAQ's of Solar Cable:

Q: How does this solar cable benefit outdoor photovoltaic installations?

A: This solar cable is engineered with UV stabilization and weatherproof materials, making it ideal for outdoor photovoltaic systems. Its high tensile strength and flame retardance provide extra safety and longevity in demanding conditions.

Q: What testing and standards ensure the cable's reliability?

A: The cable is rigorously tested up to 6.5 kV AC for five minutes and complies with major standards including TUV EN 50618, IEC 62930, and RoHS, guaranteeing reliable and safe operation for solar power applications.

Q: Where can this solar cable be installed?

A: It is suitable for a variety of installations, including solar power plants, rooftop PV setups, and both off-grid and on-grid solar energy systems. Its robust design supports reliable performance in harsh weather environments.

Q: What is the typical process for ordering and receiving the cable?

A: Customers can place a purchase order specifying required lengths and sizes. After processing, cables are carefully packaged and dispatched, with international shipping options available.

Q: How is the cable connected within photovoltaic systems?

A: The cable supports MC4-compatible connectors as well as bare ends, allowing for simple and secure integration with solar panels, inverters, and other PV components.
