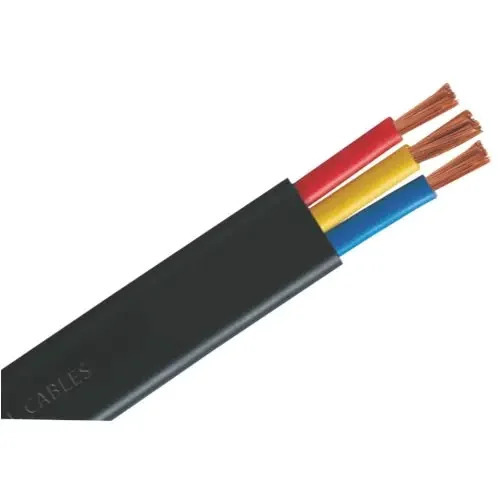

Copper Conductor Flat Cables

Copper Conductor Flat Cables Specification

Cable Length
Standard Lengths 90m/100m or as required

No Of Core
2 to 12 Cores

Conductor Type
Multi-stranded / Solid

Temperature
-15C to +70C

Connector Type
Plain / Tinned

Product Type
Flat Cable

Material
PVC, Copper

Function
Power Transmission and Distribution

Usage
Industrial, Commercial, Domestic

Voltage Surge
Upto 1100 V

Frequency (MHz)
50 Hz

Rated Voltage
1100 V

Rated Current
As per IS Standard

Cable Capacity
Depends on Size and No. of Cores

Insulation Material
PVC

Conductor Material
Copper

Length
Available as per requirement

Size
0.5 sq mm to 16 sq mm

Color
Black, Grey, as per requirement

Diameter
Flat Profile, Thickness as per design

Application
Elevators, Cranes, Conveyor Systems, Electrical Equipments

Sheath Type
PVC Outer Sheath

Flexibility
Extra Flexible for dynamic applications

Resistance Type
Oil, Grease, Water resistant

Packing Type
Coil/ Roll / Drum Packing

Flame Retardant
Yes

Conductor Class
Class 5 (Flexible) (As per IS:8130)

Standard
IS 694:2010 / IEC Standards

Tensile Strength
High

Marking
Meter Marked/Branded as per customer

Fire Retardant
FR/FRLS (Available on Request)

Copper Conductor Flat Cables Trade Information

Minimum Order Quantity
50 Meter

Delivery Time
5-7 Days

Main Domestic Market
Gujarat, Madhya Pradesh, Maharashtra

About Copper Conductor Flat Cables

We offer a premium range of Copper Conductor Service Wires designed for dependable power distribution in domestic, commercial, and industrial applications. These wires are ideal for service connections between electric poles and end-user installations, especially where higher conductivity and thermal performance are required.

Manufactured using high-purity copper conductors with PVC or XLPE insulation, these service wires ensure excellent flexibility, durability, and long-term reliability under varying environmental conditions.

Core Variants Offered:

1 Core, 2 Core, and 3 Core configurations
Sizes from 1.5 sq mm to 16 sq mm
Pure Copper Conductors (solid or stranded)
PVC or XLPE Insulation
Ideal for overhead or concealed wiring

Exceptional Flexibility for Dynamic Applications

Our flat cables are crafted with Class 5 flexible copper conductors and superior PVC insulation, ensuring excellent flexibility for demanding, constantly-moving setups like elevators, cranes, and conveyor systems. The extra-flexible design supports frequent bending and movement without compromising durability or conductivity.

Reliable Safety and Protection Standards

These cables comply with IS 694:2010 and IEC standards, incorporating flame retardant and fire retardant properties (FR/FRLS on request) to safeguard both equipment and personnel. The robust PVC sheath provides outstanding resistance to oil, grease, and water, making the cables reliable even in challenging environments.

Customizable Options to Suit Your Needs

Available in 2 to 12 cores, multiple colors, and a comprehensive range of sizes from 0.5 sq mm to 16 sq mm, our copper flat cables are also offered in standard coil, roll, or drum packing. Meter marking and branding are available as per customer requirements, ensuring easy installation and traceability.

FAQ's of Copper Conductor Flat Cables:

Q: How are Copper Conductor Flat Cables used in industrial and commercial applications?

A: Copper Conductor Flat Cables are commonly used for power transmission in dynamic setups like elevators, cranes, conveyor systems, and various electrical equipment. Their flat profile and extra flexibility make installation and movement easier in confined or moving spaces, ensuring efficient and reliable performance.

Q: What safety standards do these flat cables comply with?

A: Our flat cables are manufactured according to IS 694:2010 and IEC standards. They feature flame retardant (and optionally fire retardant) PVC sheaths, offering enhanced safety against fire, as well as excellent resistance to oil, water, and grease, providing robust protection in industrial environments.

Q: When should I request FR or FRLS sheath types for my application?

A: Fire Retardant (FR) and Fire Retardant Low Smoke (FRLS) sheath types are recommended for environments where additional fire safety is necessary, such as densely populated buildings, sensitive manufacturing units, or areas with restricted ventilation. These can be requested to match specific safety needs.

Q: Where can these cables be installed?

A: Copper Conductor Flat Cables are suitable for indoor and outdoor installations within voltage ratings up to 1100 V. Typical locations include factories, warehouses, residential complexes, and commercial buildings, especially where frequent cable movement is expected or installation space is limited.

Q: What is the process for customizing cable length, core count, or marking?

A: Customers can specify their requirements for cable length, the number of cores (from 2 to 12), color, and whether meter marking or custom branding is needed. After receiving these specifications, the cables are manufactured and packed as per the requested coil, roll, or drum format.

Q: What are the main benefits of choosing these copper flat cables?

A: These cables deliver high flexibility, mechanical strength, and superior electrical performance. They combine safety features like flame retardancy with resistance to oils, water, and grease, making them a dependable choice for dynamic and demanding environments. Their customizability further ensures they meet diverse installation requirements.
