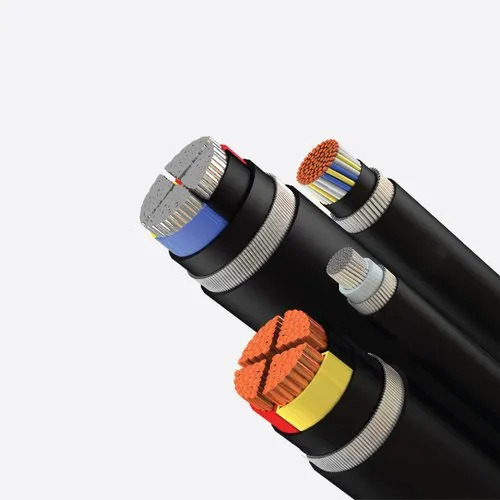

HT Power And Control Cable

HT Power And Control Cable Specification

Cable Length
Customizable as per order

Temperature
-15C to +90C

Connector Type
Without connector (bare cable ends)

No Of Core
1 Core to 4 Core or above

Conductor Type
Stranded/solid

Product Type
HT Power and Control Cable

Material
PVC, XLPE, Copper, Aluminium

Function
Power and Control Transmission

Usage
Industrial, Power Distribution, Control Panels

Voltage Surge
Withstands up to 33 kV

Frequency (MHz)
50/60 Hz

Rated Voltage
11 kV - 33 kV

Rated Current
Up to 1000 A (Depends on cable size)

Cable Capacity
High load capacity, as per IS and IEC standards

Insulation Material
PVC/XLPE

Conductor Material
High conductivity Copper/Aluminium

Length
Available up to 1000 meters (custom lengths possible)

Size
Varies as per requirement (2.5 sqmm to 400 sqmm or higher)

Color
Black, Grey, as per client requirement

Diameter
Varies with size (15mm to 80mm or more)

Application
Used in main power lines, HT panels, control & distribution, industrial plants

Tensile Strength
Strong mechanical strength

Packing Type
Wooden drum or coil

Insulation Resistance
> 1013 Ohm-cm

Minimum Bending Radius
12 x cable diameter (approx.)

UV Resistance
Available (upon request)

Armouring
Galvanized Steel Wire / Strip Armoured for Extra Protection

Standards
IS 7098, IEC 60502, BS 6622, or as specified

Sheath Type
Outer sheath made with PVC or FRLS

Screening
Copper tape/Aluminium provided for control cables as required

Fire Resistance
FR/FRLS available

HT Power And Control Cable Trade Information

Minimum Order Quantity
50 Meter

Delivery Time
5-7 Days

Main Domestic Market
Gujarat, Madhya Pradesh, Maharashtra

About HT Power And Control Cable

We offer a wide range of HT (High Tension) Power and Control Cables, designed for medium-voltage power transmission up to 33kV, ensuring safe and efficient performance in critical industrial and infrastructure environments.

Available in XLPE insulation, our HT cables are offered in single core and three core constructions, with armoured protection for mechanical strength and underground installation durability. These cables are manufactured with aluminium or copper conductors and meet all major Indian and international standards.

Core Variants Offered:

Single Core and Three Core
XLPE Insulation
Armoured Construction
Copper or Aluminium Conductor
Voltage Grades: 3.3kV, 6.6kV, 11kV, 22kV, 33kV

Custom lengths and specifications available on request.

Engineered for Superior Safety and Durability

Our HT Power and Control Cables feature galvanized steel wire or strip armouring that significantly enhances mechanical strength and resists external impacts. The available PVC or FRLS outer sheath delivers added protection against fire and chemical exposure-making these cables ideal for industrial and high-demand environments. Manufactured to strict national and international standards, these cables guarantee optimal operational safety and longevity.

Customizable Performance for Diverse Applications

Whether for main power feeds, HT panels, or control and distribution systems, these cables are tailored to suit unique project requirements. Multiple options regarding insulation type (PVC/XLPE), conductor material (Copper/Aluminium), core numbers, and sheath color allow seamless integration into any power or control infrastructure. Custom lengths up to 1000 meters and cable diameters ensure precise fit for both new and existing setups.

FAQ's of HT Power And Control Cable:

Q: How does armouring with galvanized steel wire or strip enhance cable protection?

A: The galvanized steel wire or strip armouring provides a strong mechanical barrier, protecting the cables from physical damage and external stresses encountered during installation or operation. This is especially crucial in industrial environments where extra durability is required.

Q: What are the main benefits of using FR or FRLS outer sheath in these cables?

A: FR (Fire Resistant) and FRLS (Flame Retardant Low Smoke) sheaths significantly enhance safety by minimizing fire-related hazards and smoke emission, making them suitable for environments that require stricter safety protocols.

Q: Where are these HT Power and Control Cables typically used?

A: These cables are widely used in main power transmission lines, high-tension panels, control and distribution networks, and industrial plants that require reliable, high-capacity electricity transmission and control.

Q: What standards do these cables comply with, and why is that important?

A: The cables comply with IS 7098, IEC 60502, and BS 6622 standards. Adhering to these standards ensures consistent quality, safety, and reliable performance as per global and national benchmarks.

Q: How do I determine the correct cable size and length suitable for my project?

A: Cable size and length depend on the current rating, voltage requirements, installation environment, and load capacity. Our cables are available from 2.5 sqmm to 400 sqmm (or higher) and can be custom-cut up to 1000 meters per order to fit unique specifications.

Q: Can these cables withstand outdoor environmental conditions?

A: Yes, with strong armouring and optional UV-resistant sheathing, these cables are well-suited for both indoor and harsh outdoor environments, offering long-term protection against weathering and sunlight exposure.

Q: What is the process for ordering and packaging these cables?

A: Cables are supplied in convenient wooden drums or coiled packaging, facilitating safe transport and storage. Clients can specify conductor type, insulation material, length, color, and special features during the ordering process.
